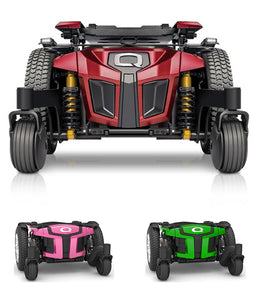

The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel® is available at 7km/h with up to 12″ of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel colour accents. The Edge® 3 is available in a total of 20 colour options, including seven brand-new, bold colours.
ADP Approved Type 3 Base
Specifications
|
Drive Wheels
|
14" solid
Optional: 14" pneumatic
|
|
Caster Wheels
|
Front: 6" solid
Rear: 6" solid
|
|
Maximum Speed4
|
Up to 10 km/h
Up to 7 km/h with iLevel activated
|
|
Turning Radius5
|
20.5"
|
|
Base Width
|
24.4"
|
|
Seating Sizes
|
Synergy®/TRU-Balance® 3 Static Seat: W: 10-22"; D: 10-22"
TRU-Balance® 3 Power Tilt: W: 12-22"; D: 12-22"
TRU-Balance® 3 Tilt and iLevel®: W: 12-22"; D: 12-22"
TRU-Balance® Flex Seating: W: 15-22"; D: 15-20"
|
|
Seat-to-Floor Heights16
|
Synergy®/TRU-Balance® 3 Static Seat: 16.5-18.5"
TRU-Balance® 3 Power Tilt: 17.5-19.5"
TRU-Balance® 3 Tilt and iLevel®: 17.5-19.5"
TRU-Balance® Flex Seating: 16.5-19.5"
|
|
Battery Size6
|
NF-22 (2)
|
|
Battery Charger
|
8A off-board
|
|
Motor Packages
|
2-Pole, Mid-Wheel 6®
|
|
Weight Capacity7
|
300 lbs.
|
|
